M.S. Box Capacitor
M.S. Box Capacitor

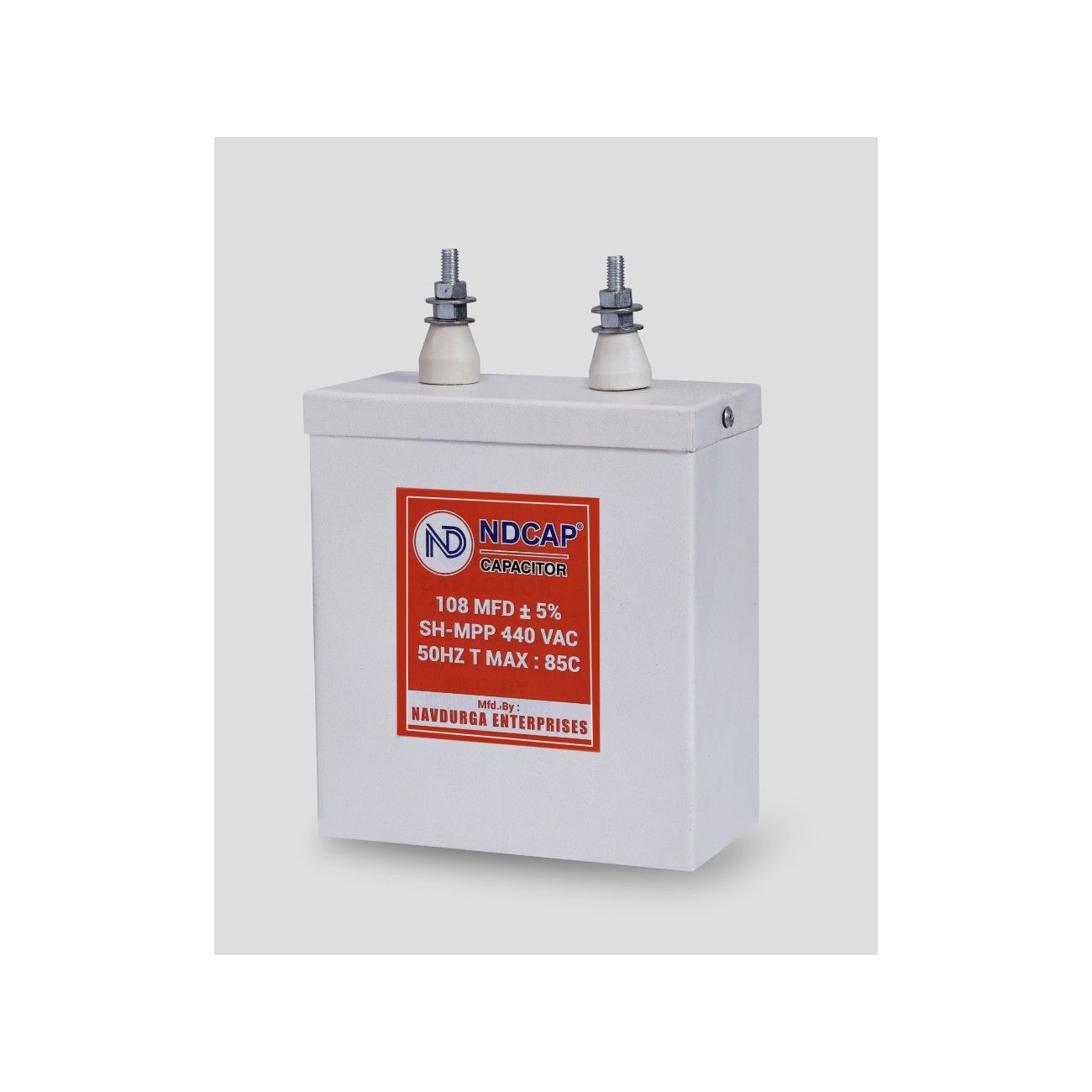

“M.S. Box Capacitors by ND are designed for panel-mounted and industrial control applications. Enclosed in a sturdy metal sheet box, these capacitors are well-suited for harsh environments and are resistant to dust, moisture, and heat. They are used in control panels, power factor correction units, and other industrial systems. These capacitors offer high reliability, long life, and superior performance under continuous electrical load. Their robust construction and consistent output make them ideal for both OEMs and retrofit applications.”
| Dielectric | Maria Anders |
| Electrode | Zinc Alloy |
| Winding | Non inductive |
| Ref. Standard | ICE/ISS |
| Fan Motor IS 1709 | |
| Motor Run IS 2993 |
ELECTRICAL CHARACTERISTICS
AC Fan & Motor Run Capacitors are manufactured in there most sophisticated plant having stringent quality control standard’s to serve its users with the most cost effective and highest quality capacitor. These capacitors are suitable for FHP Motor, Compressors of Air-Conditioners, Deep – Freezers, Vacuum pumps etc.
| Capacitance Range | 0.68 MFD to 108 MFD |
| Capacitance Tolerance | ±5% |
| Rated Voltage | 250V AC, 440V AC |
| Dissipation Factor | 0.001 Max typical value Dissipation Factor 0.0005 at 1 Khz |
| Test Voltage | 2x rated voltage |
| Storage Temp | -25°C to +85°C |
